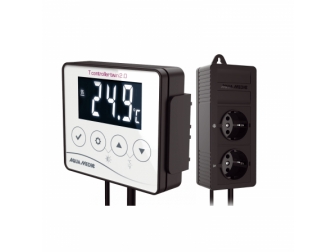

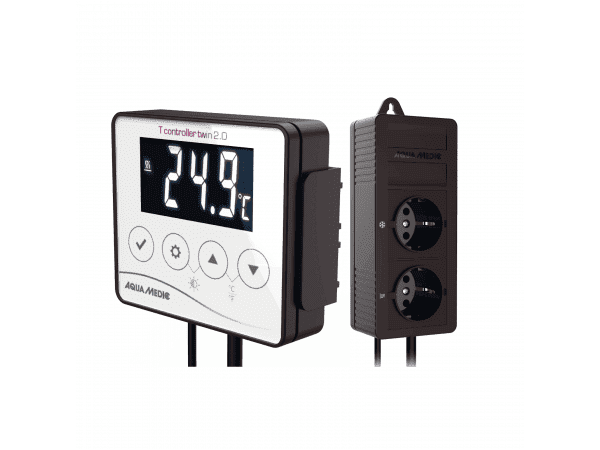

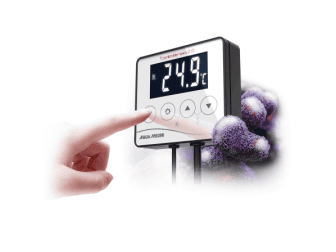

Twin Controller 2.0 Aqua Medic

The T controller twin 2.0 Aquamedic for controlling heating and cooling devices for aquariums

The T controller twin Aquamedic is designed for precise control of heating or cooling devices for freshwater and saltwater aquariums.

Measurement precision and temperature adjustment

The measurement precision is 0.1 °C. The reference temperature can be adjusted from 16 to 40 °C in 0.1 °C increments.

Maximum capacity and built-in double socket

Each heating device can reach a maximum capacity of 1,200 watts, while each cooling device can reach 460 watts. The T controller twin features a built-in double socket, allowing you to simultaneously connect a heating device and a cooling device.

Temperature probe and LCD display

The T controller twin is equipped with a seawater-resistant temperature probe, directly connected. The LCD screen always shows the current temperature. The minimum and maximum values can be easily set.

Versatile use

This digital temperature measurement and adjustment device is also suitable for heating aquariums and underfloor heating. You can continuously measure and adjust the temperature of your aquarium water and ensure water circulation in your substrate.

Safe and protected

Thanks to the IP 65 protection rating, the T controller twin 2.0 is perfectly protected against dust and water.

Sensor cable: 1.90 m

Package contents

The Heat Controller Duo device comes with a waterproof temperature probe and is ready to use. The devices to be controlled can be connected to the double socket (heater, heating cable, or heating mat).

Socket description

Socket 1 can control an aquarium heater, with a maximum load of 1,200 watts.

Socket 2 can control a cooling system for an aquarium, with a maximum load of 460 watts.

Startup

• Connect the device to a 220 V power source.
• Securely attach the probe in the aquarium using a suction cup or an electrode holder.
• After a few minutes of adaptation, the current aquarium temperature will be displayed.

Technical data

• Display: 0.1 °C
• Measurement range: 0.0 to +50.0 °C
• Resolution: 0.1 °C
• Contact load: 1,200 watts with 220 V AC
• Air humidity: less than 85%
• Adjustment range: 16 – 40 °C
• Adjustment accuracy: +/- 1 °C
• Current: 220 V, 50 Hz

Warranty conditions

AB Aqua Medic GmbH guarantees the device to the first buyer for 24 months from the date of purchase, against any material or manufacturing defects. The warranty does not apply to wear parts such as the pump hose, rotor, and motor. The consumer benefits from legal rights in addition to the warranty. The original receipt serves as proof of purchase. During this period, the device will be repaired free of charge by replacing new or reconditioned parts by AB Aqua Medic GmbH, in the event of material or manufacturing defects occurring during appropriate use. The warranty does not cover damage due to transportation, incorrect handling, negligence, improper installation, or modifications/alterations made by unauthorized persons. In case of problems during or after the warranty period, please contact your specialized dealer. All subsequent steps will be managed between the specialized dealer and AB Aqua Medic GmbH. Claims and returns not submitted through the specialized dealer will not be processed. AB Aqua Medic GmbH disclaims any liability for indirect damages related to the use of the device. Address: AB Aqua Medic GmbH - Gewerbepark 24 – 49143 Bissendorf/Germany - Subject to technical modifications – As of 03/2019.
