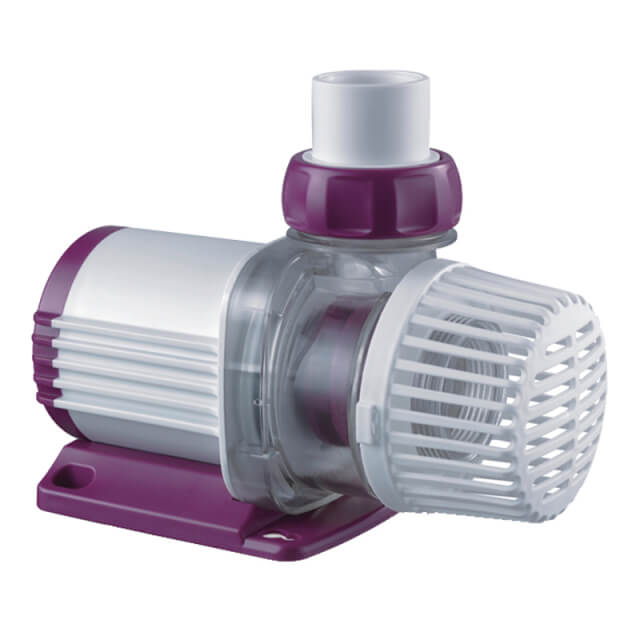

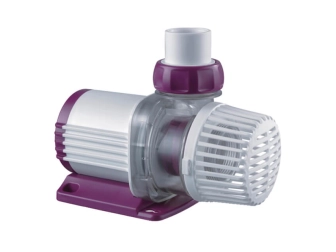

Jecod MDP8000 WIFI includes controller

The Jecod MDP WIFI return pump is controlled with an Android and Apple application or by the manual controller. There are no electronic parts inside the pump, which gives it greater longevity.

The MDP Wi-Fi return pumps are the latest 2021 pumps from the Jecod / Jebao brand.

Advantages:

The sinusoidal wave controller technology ensures ultra-quiet operation.

New controller with LCD screen

- Speed control settings between 30% and 100% in 1 Watt increments
- Digital display of energy consumption.
- Suitable for use inside or outside of water
- Seals for inlet and outlet connections
- Improved discharge pressure performance compared to DCP models
- New rotor design for quieter operation
- Energy savings up to 65%
- IC electronic detection, the pump turns off if there is no more water.
- Wear-resistant ceramic shaft

- Protection: IPX8

Specifications

In France, the voltage continuously varies on the electrical network between 220v and 240v; we recommend an EATON 450 UPS (available in electronics stores).

Introduction

Introducing the Wi-Fi controllable pumps from Jebao. These pumps come with a dual-interface controller that allows you to set the pump parameters directly from the control unit or remotely via the Jebao Aqua app if connected to a home router or mobile device.

The pump uses sinusoidal wave technology and a wear-resistant ceramic shaft for long, reliable, and quiet operation.

Features

Controller

• LCD screen on the controller
• Smart control system via 2.4G Wi-Fi
• Adjustable maximum flow rate
• Controllable via app
• Sine wave technology for silent operation
• Automatic power-off protection
• Safe for freshwater and saltwater aquariums
• Wear-resistant ceramic shaft
• Low voltage DC power input
• Low power consumption
• Removable mounting bracket for the controller
• Programmed power mode and on/off functions
• Multiple programmable flow rates in the app
• Pumps can operate submerged or externally
• Hose connection fittings included

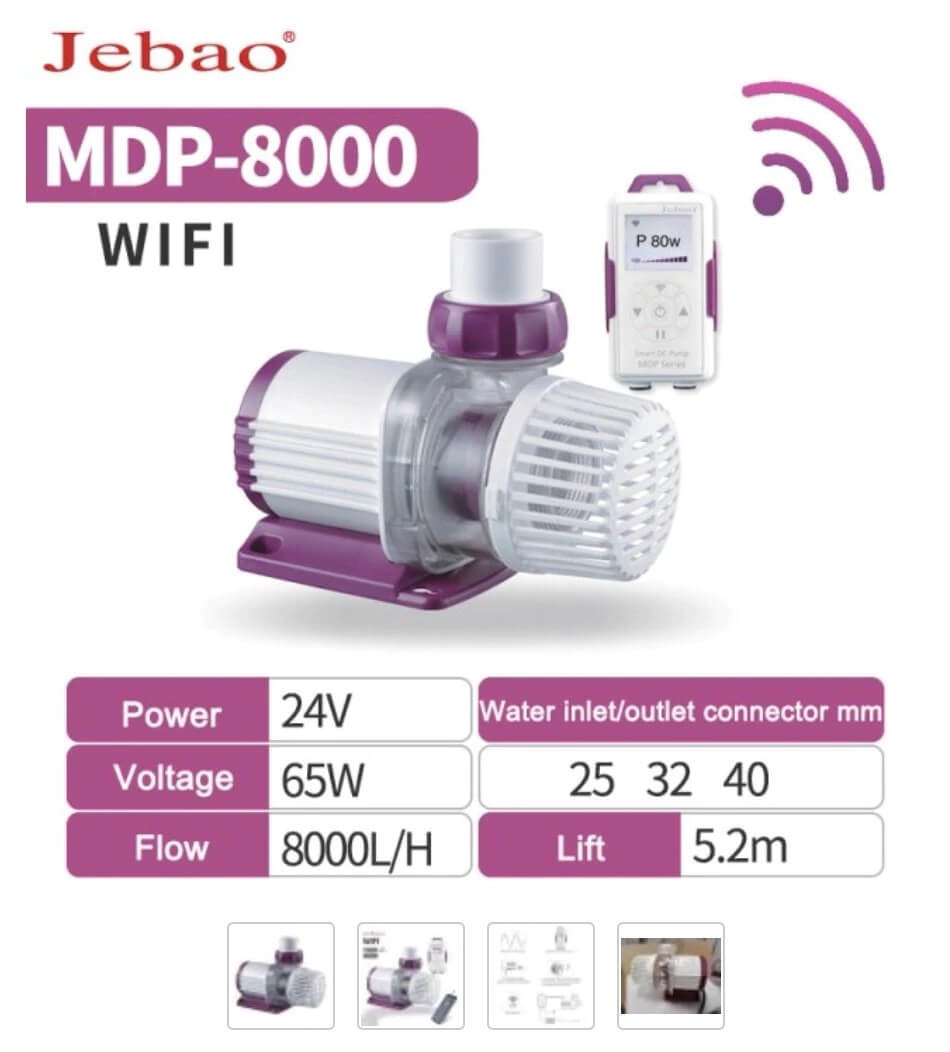

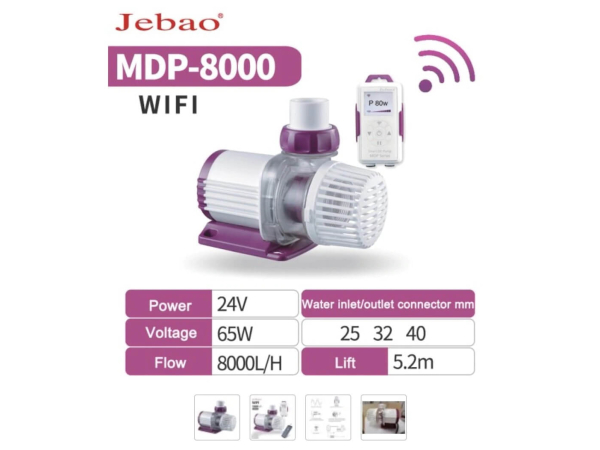

Technical Specifications

• Maximum flow rates
  • MDP-2500: 2500 L/H
  • MDP-3500: 3500 L/H
  • MDP-5000: 5500 L/H
  • MDP-6000: 6200 L/H
  • MDP-8000: 8000 L/H
  • MDP-10000: 10000 L/H
• Included inlet/outlet fittings
  • MDP-2500: Inlet 25 mm / Outlet 25 mm
  • MDP-3500: Inlet 32 mm / Outlet 25 mm
  • MDP-5000: Inlet 32/40 mm / Outlet 25/32/40 mm
  • MDP-6000: Inlet 32/40 mm / Outlet 25/32/40 mm
  • MDP-8000: Inlet 32/40 mm / Outlet 25/32/40 mm
  • MDP-10000: Inlet 32/40 mm / Outlet 25/32/40 mm
• Maximum power consumption
  • MDP-2500: 23W
  • MDP-3500: 28W
  • MDP-5000: 40W
  • MDP-6000: 45W
  • MDP-8000: 65W
  • MDP-10000: 80W
• Maximum head height
  • MDP-2500: 2.5M
  • MDP-3500: 3.5M
  • MDP-5000: 4M
  • MDP-6000: 4.5M
  • MDP-8000: 5.2M
  • MDP-10000: 6M

Smart Wifi User Manual

A. Wi-Fi Status

• Blinking: Controller in smart setup mode
• Blinking with AP: Controller in AP configuration or Direct mode
• Not blinking: Connected to a router
• Not displayed: Connection with the router was lost

B. Current maximum power

C. Current power setting

Can be set between 30 and 100

D. Wi-Fi Button

Hold down to switch between Smart Configuration mode and AP Configuration mode.

E. Up Button

Press to increase power.

F. On/Off Button

Press to turn the pump on or off. Once turned on, the pump will return to its last power setting.

G. Down Button

Press to decrease the power setting.

H. Pause Button

Press to set the device in timed feeding mode or cancel timed feeding mode and return to normal operation.

AppControl

The pump is fully controllable via the app and has a "program mode" option for more complex configuration or operation. This feature allows you to set different power levels over a 24-hour period. Using this function, it is possible to set night schedules to create a calmer flow or have changing conditions throughout the day.

The feeding mode can be added to this daily program, pausing the pump at defined times to feed the fish. Stop periods can also be incorporated into the program to stop the pump. If the pump is operating in manual mode, it is also possible to modify the automatic duration of
