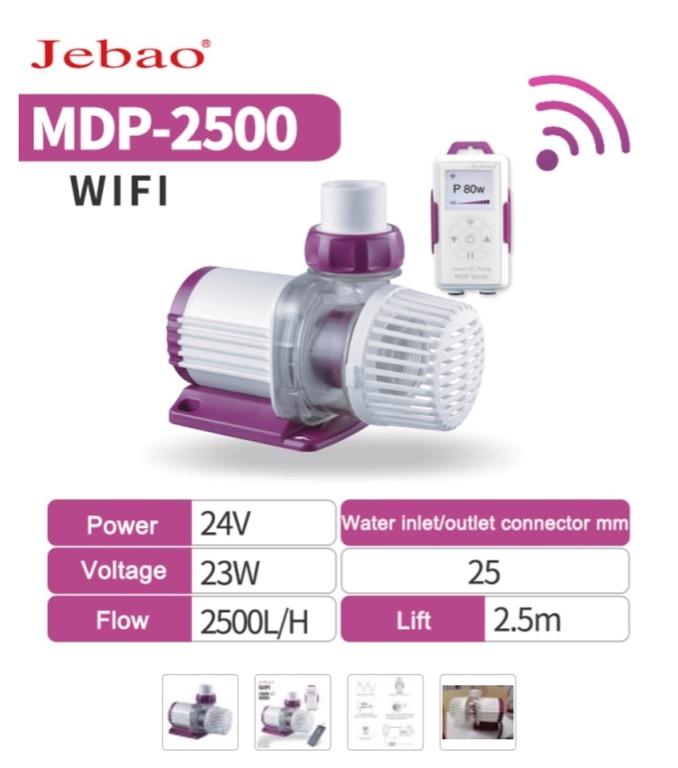

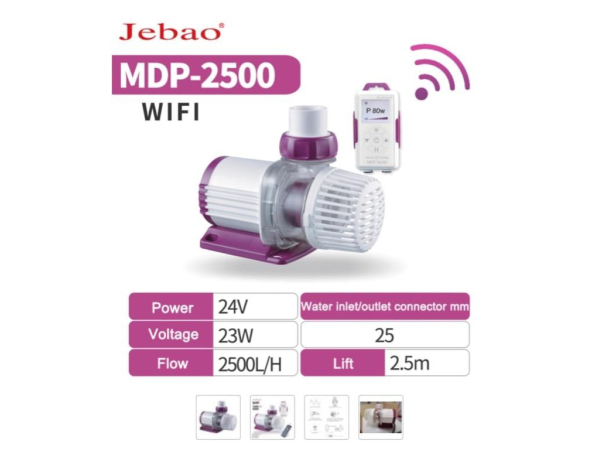

Jecod MDP 2500 WIFI includes controller

The Jecod MDP WIFI return pump is controlled with an Android and Apple application or by the manual controller. There are no electronic parts inside the pump, offering it greater longevity.

The MDP Wi-Fi return pumps are the latest 2021 pumps from the Jecod / Jebao brand.

Advantages:

The sine wave controller technology ensures ultra-quiet operation.

New controller with LCD screen

- Speed control settings between 30% and 100% in 1 Watt increments
- Digital display of energy consumption.
- Suitable for use inside or outside of water
- Seals for inlet and outlet connections
- Improved discharge pressure performance compared to DCP models
- New rotor design for quieter operation
- Energy savings up to 65%
- IC electronic detection, the pump shuts off if there is no more water.
- Wear-resistant ceramic shaft

- Protection: IPX8

Specifications

In France, the voltage varies continuously on the electrical grid between 220v and 240v, we recommend an EATON 450 UPS (available in electronics stores).

Introduction

Introduction to the Wi-Fi application controllable pumps from Jebao. These pumps come with a dual-interface controller allowing you to set the pump parameters directly from the control unit or remotely via the Jebao Aqua application if connected to a home router or mobile device.

The pump uses sine wave technology and a wear-resistant ceramic shaft for long, reliable, and quiet operation.

Features

Controller

• LCD screen on the controller
• Intelligent control system via 2.4G Wi-Fi
• Adjustable maximum flow rate
• Controllable via app
• Sine wave technology for quiet operation
• Automatic power-off protection
• Safe for freshwater and saltwater aquariums
• Wear-resistant ceramic shaft
• Low voltage DC power input
• Low consumption
• Removable mounting bracket for the controller
• Preset power mode and on/off functions
• Multiple programmable flow rates in the app
• Pumps can operate submerged or externally
• Hose connection fittings included

Technical Specifications

• Maximum Flow Rates
  • MDP-2500: 2500 L/H
  • MDP-3500: 3500 L/H
  • MDP-5000: 5500 L/H
  • MDP-6000: 6200 L/H
  • MDP-8000: 8000 L/H
  • MDP-10000: 10000 L/H
• Included Input/Output Fittings
  • MDP-2500: Input 25 mm / Output 25 mm
  • MDP-3500: Input 32 mm / Output 25 mm
  • MDP-5000: Input 32/40 mm / Output 25/32/40 mm
  • MDP-6000: Input 32/40 mm / Output 25/32/40 mm
  • MDP-8000: Input 32/40 mm / Output 25/32/40 mm
  • MDP-10000: Input 32/40 mm / Output 25/32/40 mm
• Maximum Power Consumption
  • MDP-2500: 23W
  • MDP-3500: 28W
  • MDP-5000: 40W
  • MDP-6000: 45W
  • MDP-8000: 65W
  • MDP-10000: 80W
• Maximum Head Height
  • MDP-2500: 2.5M
  • MDP-3500: 3.5M
  • CDM-5000: 4M
  • MDP-6000: 4.5M
  • MDP-8000: 5.2M
  • CDM-10000: 6M

Smart Wifi User Guide

A. Wi-Fi Status

• Blinking: Controller in smart configuration mode
• Blinking with AP: Controller in AP configuration or Direct mode
• Not blinking: Connected to a router
• Not displayed: Connection with the router has been lost

B. Current Maximum Power

C. Current Power Setting

Can be adjusted between 30 and 100

D. Wi-Fi Button

Hold to switch between Smart Configuration mode and AP Configuration mode.

E. Up Button

Press to increase the power.

F. On/Off Button

Press to turn the pump on or off. Once turned on, the pump will revert to its last power setting.

G. Down Button

Press to decrease the power setting.

H. Pause Button

Press to set the device in timed feeding mode or cancel timed feeding mode and return to normal operation.

AppControl

The pump is fully controllable in the app and has a "program mode" option for more complex setup or operation. This feature allows different power levels to be set over a 24-hour period. By using this function, it is possible to set night schedules to create a calmer flow or to have changing conditions throughout the day.

The feeding mode can be added to this daily program, pausing the pump at set times to feed the fish. Stop periods can also be incorporated into the program to stop the pump. If the pump is operating in manual mode, it is also possible to modify the automatic duration of the feeding mode.
