LED A360X Refugium Kessil

LED A360X Refugium

The compact LED fixture Kessil® A360X Refugium allows spectrum adjustment according to the development phase of algae, soft corals, or plants in refugiums. Its numerous color control options are an advantage, as well as its highly concentrated light flux.
The Kessil® Narrow Reflector included with the fixture triples the concentration of the light flux, making it even more penetrating and preventing diffusion into the tank environment. Compatible with the Kessil® WiFi Dongle.

Technical Specifications:

Spectrum: Red, Green, Blue (RGB), Bloom, Grow, Daylight

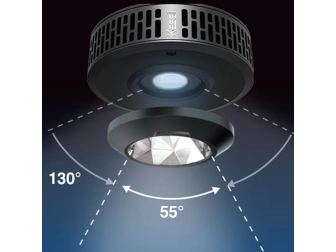

Coverage: 130° / 55°; up to a 60 cm diameter
Penetration: 60 - 75 cm
Power Supply: 100-240 V AC (input), 19 V DC (output)
Consumption: 90 W max
Dimensions (L x H): 110 mm x 68 mm
Weight: 390 g

Contains:
1 x LED A360X Refugium
1 x A360X Narrow Reflector
1 x power adapter
1 x power cable
1 x extension cable
1 x hanging ring
2 x metal screw hooks
2 x hanging hooks

Features

Adjustable Spectrum

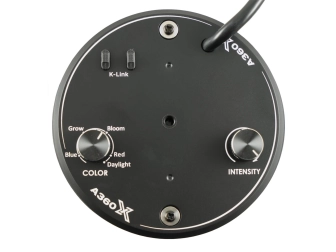

The spectrum is selected directly on the body of the fixture. For maximum comfort and flexibility, ergonomic intensity and color controls allow you to quickly change the color and adjust the intensity from 10% to 100% depending on the growth phase of the algae/plant.

Blue Spectrum

The blue spectrum enhances the growth of algae/soft corals/plants at every stage of their growth by stimulating cell multiplication. Especially recommended for refugiums with soft corals (mainly Xeniidae).

The "GROW" growth spectrum improves vegetative growth throughout the lifecycle of many macroalgae (Chaetomorpha, Caulerpa, Gracilaria, etc.).

The "BLOOM" Spectrum

The "BLOOM" spectrum increases yield by promoting flowering at the crucial stage of plant reproduction.

Red Spectrum

The red spectrum promotes root growth and productivity.

Daylight Mode

Additionally, a "Daylight" mode is available for cleaning the tank or taking photos.

Green Spectrum

The green spectrum is used for observing plants without disturbing their growth cycle. This spectrum is only possible with a WiFi-Dongle connection.

Lighting Design with the A360X Narrow Reflector

The Kessil® Narrow Reflector triples the concentration of the light flux of the A360X LED, making the light even more penetrating and preventing diffusion into the tank environment. The increase in contrasts, depth, and light dynamics makes the aquarium even more realistic.

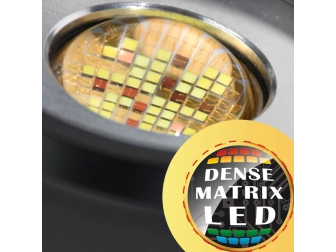

Dense Matrix Technology for Superior Lighting

Following the patented Dense Matrix technology, Kessil® concentrates numerous LED components on a single surface (cluster), ensuring a powerful and penetrating light source with a reach of up to 75 cm below the water surface, eliminating shadow zones. The average reach can be further enhanced by placing multiple fixtures side by side.

Waterproof and Durable

Photon Volume Density - Superior ratio between the size of the fixture and the light output
Photon Volume Density - Superior ratio between the size of the fixture and the light output
Although the heat sink and thus the compact body of the A360X LED are 30% smaller than those of the previous A360 version, the A360X offers 25% higher light output and a larger light cone.

Cooling Management

The innovative cooling management principle ensures a constant light flux and energy consumption.
