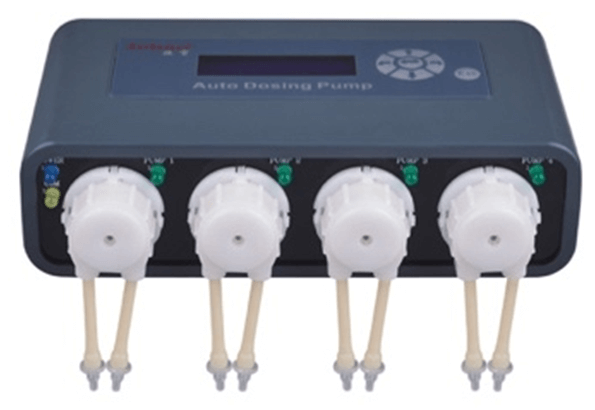

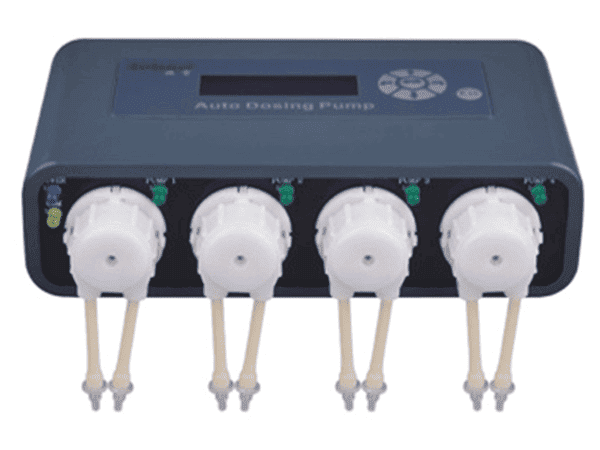

Jecod 2.4 Wi-Fi Dosing Pump + DS4 Manual

4-channel dosing pump 2.4 Wifi and with manual dial

Perfect due to the combination of Wifi and the manual dial, this pump will allow you to be properly calibrated regardless of server updates or your phone. Indeed, very recent phones may have connection issues with aquarium devices; this pump will allow you to adjust all that.

Technical details and user guide for the dial:

LCD screen with blue light
Battery backup - Clock and user settings are saved in the event of a power outage.

Box contents: dosing pump, power adapter
The user will need to purchase PVC tubes - (standard airline 4x6mm)
Software details: Master Dosing Pumps

Calibration of each pump volume
Number of doses per day (per pump) 1 - 24
Interval of days for dosing from 0 to 30 days (0 = no dose, 1 = every day, 2 = every other day, etc.)

Dosing volume per dose 1 - 9999 ml

Quick user guide:

Example with DP-4 dosing pump

User manual
The Jecod DP-4 dosing pump is an automatic dosing pump designed for
adding liquids to an aquarium at times and volumes defined by the user. Before operating, please read the manual carefully.

Introduction to the control panel (see diagram in the downloadable manual below)

Menu and confirm
ESC: back
↑ : Shift up, more
↓ : Shift down, less.
← : Shift left
→ : Shift right

Setting the date and time
- Set a new date:
2013-11-13
Press "" to enter the menu, select "Set date and time" by
pressing the "↑" "↓" button. Press "←" "→" to switch between
date fields. Increase/decrease by pressing the "↑" "↓" button.
- Set a new time:
12:00:00
Press "" to save the data and go to the clock setting screen,
press the "←" "→" button to select the hour digit. Press "↑" "↓"
to increase/decrease the digit. Press "" to save and go back

Menu mode: Pumps
1 2 3 4 5 6 7 8
In the main menu, press the "←" or "→" button to
enter manual mode. To select the required pump, press
"←" or "→". Press and hold "" to operate the pump and prime
the tube.
Before use, check the operation of each pump. Prime the tube to
ensure the tube is filled with liquid. Make sure there are no air
bubbles present in the tube. Perform calibration.
For greater accuracy, please keep the dosing pump horizontal.

Flow calibration
From the main page, press the "↑" or "↓" button to enter
Calibration mode
