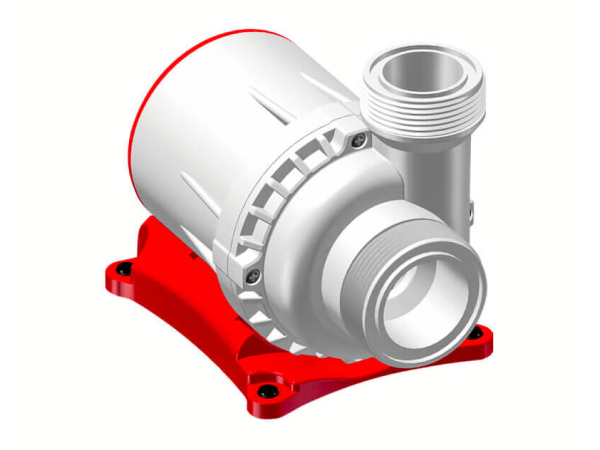

VarioS 10 Octo 16000 liters/hour

VarioS 10 DC: The Advanced Controllable Pump by Reef Octopus

The VarioS 10 DC is a controllable circulation pump designed by Reef Octopus. It is specially designed for high-pressure applications, offering variable speed flow technology for refined control, improved performance, and optimal energy efficiency.

Main Features of the VarioS 10 DC Pump

Equipped with high-quality ceramic shaft and bearings, this pump ensures both durability and quiet operation. It is ideal for those who have their filtration system on a different level from their main aquarium, thanks to a head height of nearly 9 meters.

Additionally, the VarioS 10 DC features a rotating volute, allowing you to adjust the outlet orientation either horizontally or vertically.

Control and Connectivity

One of the highlights of this pump is its 0-10V controller port. This means you can control the pump with your preferred aquarium controller. Connectivity is a major asset for those looking to integrate the pump into a larger aquarium ecosystem.

Technical Specifications

• Inlet: 50mm / 1.5" Thread (Flange Union PVC)
• Outlet: 40mm / 1.25" Thread (Flange Union PVC)
• Maximum Flow Rate: 16,000 liters per hour
• Maximum Head Height: 9 meters
• Power: 25-200W
• Voltage: 36V DC
• Dimensions: 21.1 cm x 13.2 cm x 16 cm (LxWxH)
• Cable Length: 4.5 meters

Box Contents

Each purchase of the VarioS 10 DC includes the controllable pump, a VarioS controller with mounting bracket, a power supply with mounting bracket, an inlet union, an outlet union, and an intake protection screen.

In summary, the VarioS 10 DC pump by Reef Octopus is a cutting-edge solution for those seeking performance, control, and durability in their aquarium system.

Controller module with 90 variable speed control settings
Designed for high-pressure applications
High-quality ceramic shaft and bearings for more durable and quieter operation
Rotating outlet volute
Integrated complex circulation and cooling mechanism to prevent pump overheating
Automatic shutdown system when electrical circuit anomalies are detected
External 0-10V controller connection
Float switch capability*
A 5-minute delay can be activated
Dual power supply model (15 or 60 minutes)
36V DC for safer operations
2-year warranty for the pump motor only**
