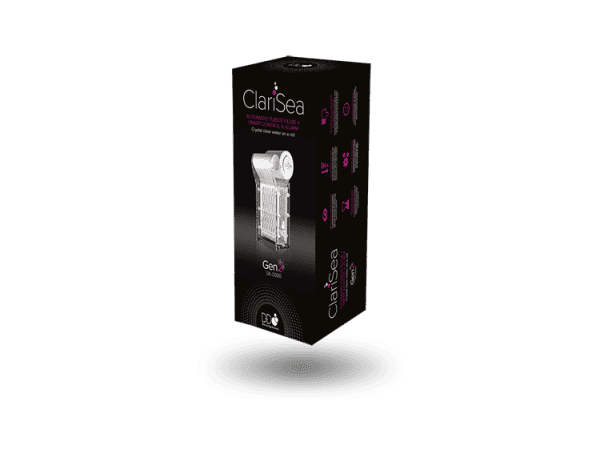

ClariSea SK-3000 GEN3 Auto fleece filter & alarm

ClariSea SK-3000

The ClariSea fleece filter is a high-efficiency water filtration system that effectively removes suspended particles such as microalgae, detritus, food, organic waste, and debris from the water column. Suitable for use in marine aquariums, freshwater aquariums, fish breeding systems, and coral propagation systems.

A CLEARLY BRILLIANT WATER

A ClariSea filter will completely replace the need for high-maintenance filter socks and provide crystal clear aquarium water.

PENETRATION OF LIGHT

The use of a ClariSea fleece filter will ensure the highest possible filtration efficiency for optimal light penetration, thereby enhancing the growth of your corals and plants.

REDUCED ACCUMULATION OF ORGANIC WASTE Eliminates in
It continues the removal of debris and organic waste from the water column, preventing them from decomposing into nitrate and phosphate in your aquarium.

REDUCED LOAD ON PROTEIN SKIMMER

The ClariSea fleece filter significantly reduces the load on your protein skimmer by removing even the smallest particles.

LOW MAINTENANCE

A constant filtration results in reduced maintenance of pumps, waves, and protein skimmers, plus ... no more socks to clean.

MORE TRASH

A ClariSea fleece filter will significantly reduce the accumulation of debris in the substrate and sump of your aquarium.

Characteristics

High-volume filtration capacity
Minimal installation footprint
Completely replaces the need for filter socks
Self-assembly for easy cleaning
Multiple installation options
Automatic advancement of dirty fleece
Multifunctional Intelligent Controller
End of roll audible alarm
Filter jam / float / water depth alarm error
Phosphate-free polar material
Special low-odor polar material
Integrated security overflow
Silencer plates for quiet operation
Water diversion system
Characteristics
Recommended flow rate: 3000 l/h (800 US gph)
Particle size elimination: up to 20 microns
Maximum submerged water depth: 20 cm (8”)
Height adjustment of the hanging bracket: up to 12 cm (4”)
Maximum sump glass thickness for hanging on the bracket: 13 mm (1/2")
Recommended aquarium size at 5x tank turnover (3000 l/h) = 600 liters
Recommended aquarium size at 4 x tank turnover (3000 l/h) = 750 liters
Inlet connection: 32 mm (1" fitting for the United States) Click here to obtain information on pipe sizing.
Filter fleece: width 10 cm (4”) - length 40 m (131 ft)


Dimensions

Mounting and installation options
The Gen2 ClariSea is very flexible and easy to position in your sump.

• You can hang it at the back, front, or sides of most sump pits.
• You can freely place it on the base of a shallow sump with a water level below 200 mm.
• You can freely place it on a box or a shelf in deeper sumps.
• You can feed it from the front or the back.
• You can supply water from the top, the side, or at an angle.
• You can even pump to feed him.

ClariSea Gen 2 was voted as one of the top 10 Reefbuilders products of 2018.

Functions of the intelligent controller
Buttons and indicators
Engine button
Manually advance the engine in fleece.


Alarm button

Press the alarm button for 1 to 2 seconds to deactivate the audible alarm. The alarm condition will still be present.
The red LED is still blinking.
Automatic fleece advance disabled.
The engine button will always function as manual advance.

Press the alarm button for more than 5 seconds to completely reset the controller, fully clearing the alarm state.

Disconnecting the power supply will also reset the controller and clear the alarm state.


Normal operation

Initialization (power on or reset):
• The blue/red LED flashes 5 times, and an audible alarm sounds with each flash
• The blue LED will remain on.

Engine advance:
Manual or automatic, the blue LED flashes.

Possible alarm conditions:
The alarm sounds if the roller cannot move forward or if the float is activated for more than 5 seconds.
• The red alarm LED is flashing
• An audible alarm sounds for 2 seconds every 5 seconds.
• Automatic fleece advancement disabled.


If the float is not activated for 8 hours, it may mean that the fleece is empty.
• Blinking blue/red LED, an audible alarm sounds for 1 second every 2 seconds
• Automatic fleece advancement disabled.

If there is a possible installation error and the float is not triggered within 48 hours after the initial setup or reset.
• The red LED flashes at 10-second intervals, and the audible alarm sounds with each flash.
• Automatic fleece advancement disabled.

IMPORTANT NOTE

You MUST use only the 20 mm bolt to attach the motor to the ClariSea according to our quick start guide below. Do not use the 30 mm bolt (used for the clean fleece), as it will damage the motor.

FAQ (Frequently Asked Questions)

I hear the motor running on my Clarisea, but the roll isn't turning? CLICK HERE

Why is my dirty Clarisea filter roll difficult to remove? CLICK HERE

The cable of my Clarisea motor came off while unwinding the fleece, can this be repaired?

For the quick start guide and dimensional drawings, please download the files below.
