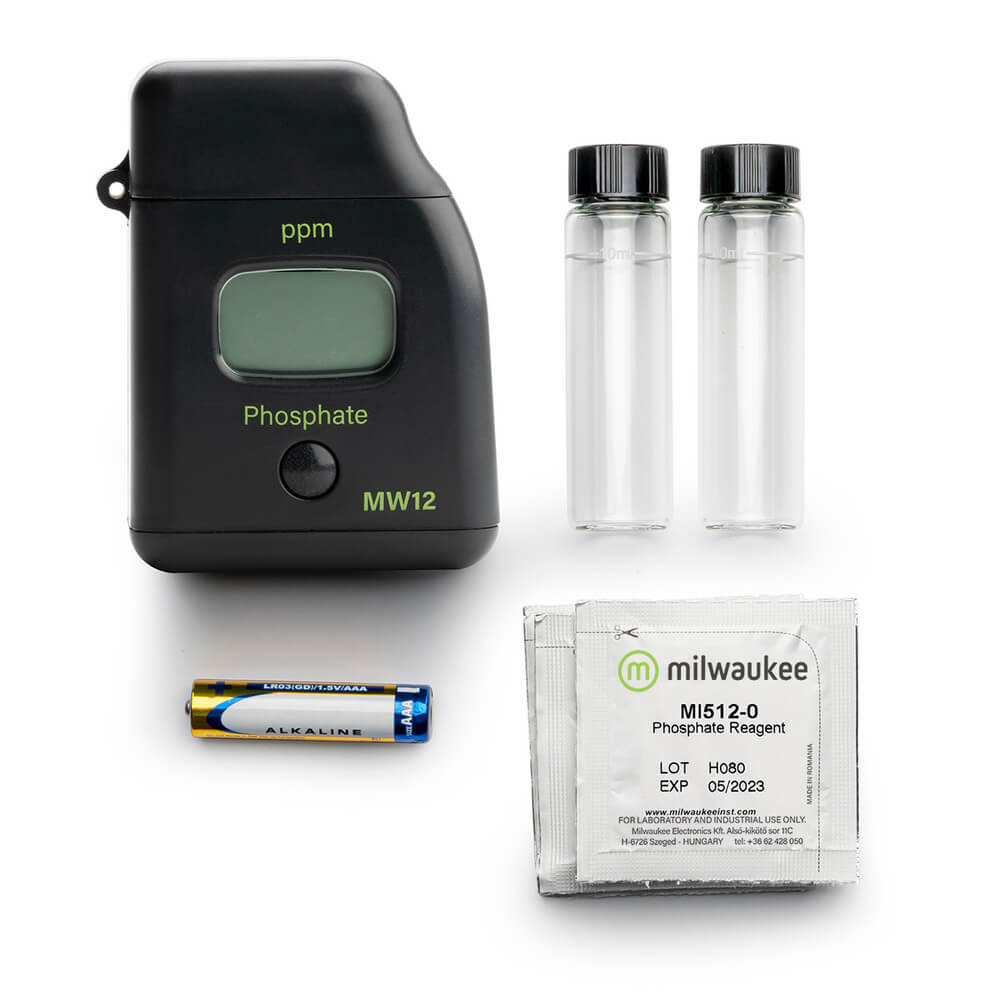

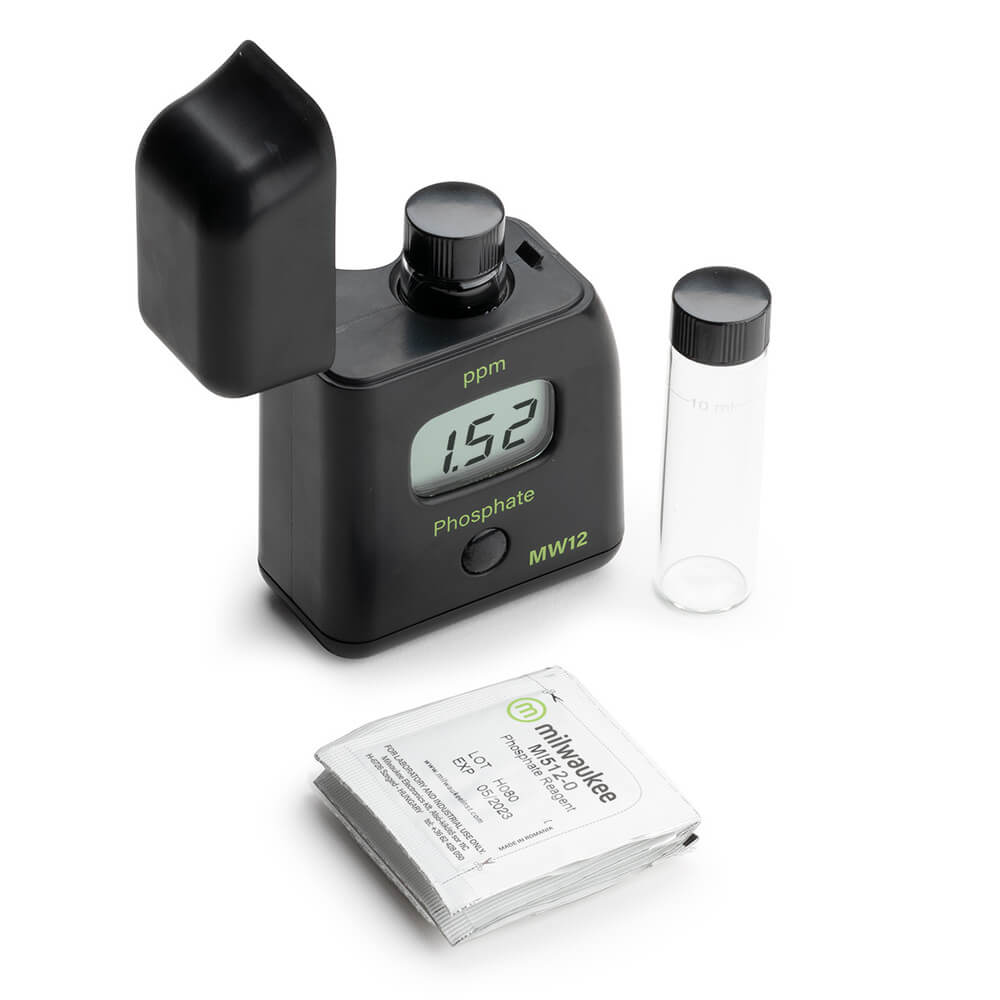

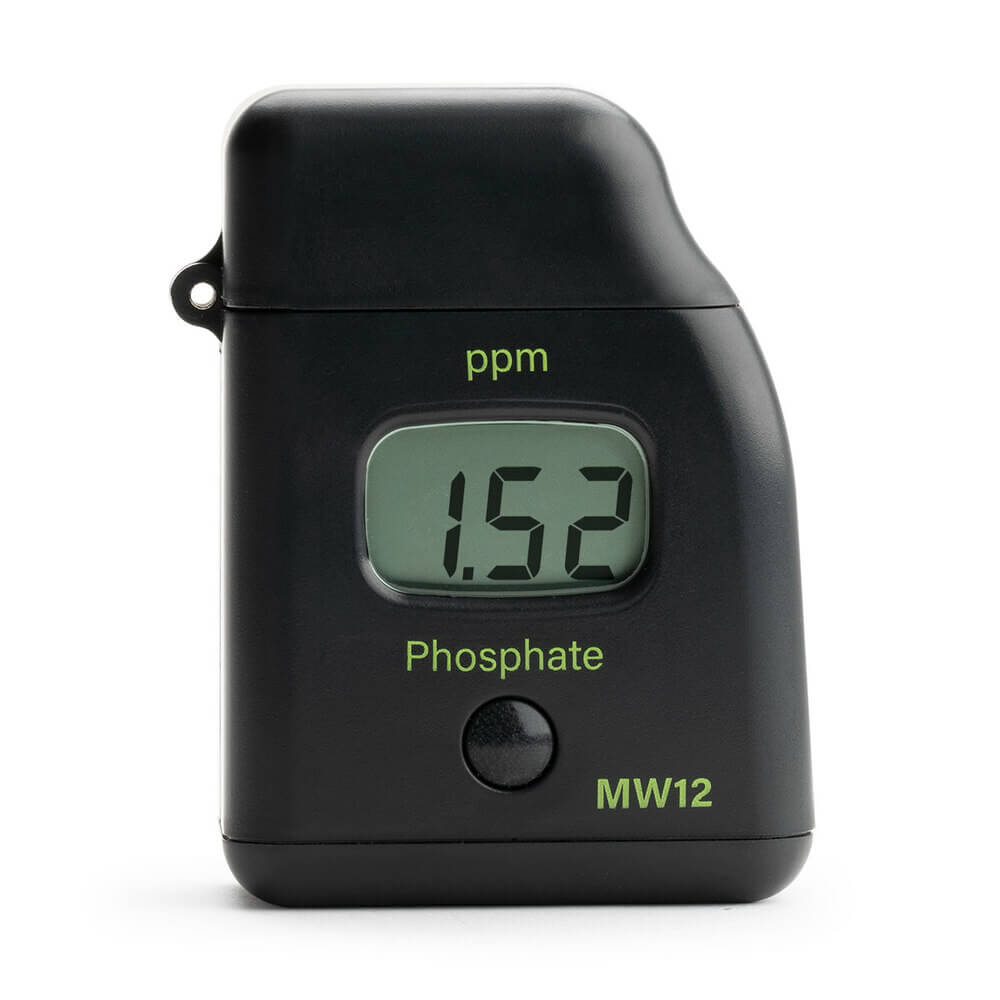

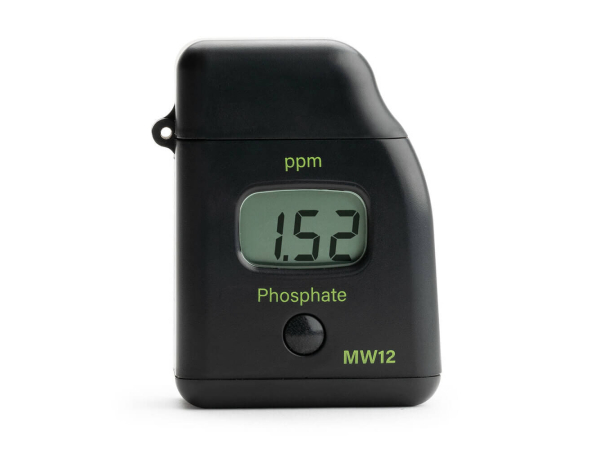

MW12 Phosphate PO4 Photometer MILWAUKEE
MW12 Phosphate Photometer MILWAUKEE - Downloadable Manual
Data sheet
- Dangerous classified products Article R. 1342-1:
- Dangerous. Follow the usage precautions.
Specific References
- EAN13
- 5999567670915
- Weight
- 0.5 kg
En savoir plus
MW12 Photometer PO4 MILWAUKEE Phosphates - Downloadable manual at the bottom of the page
The new revolutionary range of portable photometers is compact and easy to use.
Their main advantages are the small size and real simplicity during on-site measurements. In just a few minutes, you can get the desired result on the LCD screen, and the instrument directly displays the concentration of the specific component in ppm. For more general information about the operating system of a photometer, visit the Photometer category.
FEATURES
Range 0.00 to 2.50 ppm
Resolution 0.01 ppm Accuracy ± 0.04 ppm ± 4% of reading at 25 °C
EMC Dev typical. ± 0.01 ppm
Light source 525 nm LED
Light detector Silicon photocell
Method Adaptation of standard methods for the examination of water and wastewater, 20th edition, Ascorbic Acid Method. The reaction between the phosphate and the reagent causes a blue coloration in the sample.
Environment 0 to 50 °C (32 to 122 °F) max. 95% RH without condensation
Battery type 1 x 1.5 V AAA
Automatic shutdown After 3 minutes of non-use and 2 minutes after reading.
Dimensions 81.5 x 61 x 37.5 mm (3.2 x 2.4 x 1.5 ") Weight 64 g (2.25 oz)
Instructions for use:
-Take 10 ml of water from your aquarium and place it in the vial
-Place the vial in the photometer and press the button to calibrate
-Remove the vial then pour the contents of an entire sachet
-Replace the vial in the photometer
-Press the photometer button, a countdown starts, corresponding to the mixing time of the product.
- Once the countdown is finished, the reading is done automatically on the photometer
(interference may occur if you perform different tests with the same vials, be sure to mix the product gently and avoid leaving fingerprints around the vial).
Refills: see below
Download
