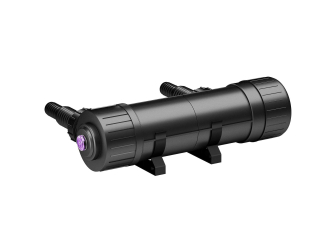

9 Watt UV-C Sterilizer Helix Max 2.0 by Aqua Medic
UV-C Sterilizer 9 Watts aqua medic, for marine aquariums of 100 to 200 liters (flow rate of 200L/H) and freshwater aquariums of 100 to 500 liters (flow rate of 500L/H). Supplied with a 2-meter linear cable.
In stock - Dispatched within 24 hours
€97.90
Data sheet
- Maintenance
- Downloadable manual at the bottom of the page
En savoir plus
UV-C Sterilizer 9 Watts by Aqua Medic, for saltwater aquariums of 100 to 200 liters (flow rate of 200 L/H) and freshwater aquariums of 100 to 500 liters (flow rate of 500 L/H). Supplied with a 2-meter linear cable.
The replacement bulbs are in the suggestions tab below.
Dimensions:
length 29 cm
width 7.5 cm
- Destroys floating algae and creates clear water in marine and freshwater aquariums.
- Inactivates bacteria and pathogens, thereby reducing the risk of infection for the fish.

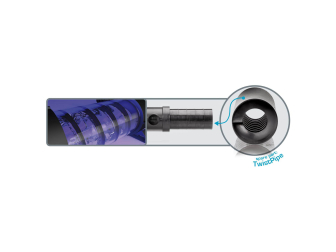

- The unique water flow and large volume of the Helix Max 2.0 allow for optimal water clarification. The water is guided through the quartz tube in a spiral with a long contact time. The UV radiation is utilized to the maximum.
- The inlet of the Helix Max 2.0 can rotate 360°. This allows for a space-saving installation.
- Easy cleaning of the inner spiral by simple disassembly.
- Simple and safe function control thanks to an integrated viewing window.
- All versions of the Helix Max 2.0 are equipped with a high-frequency electronic ballast for marine and freshwater aquariums. Electronic ballasts ensure a higher UV output and a longer lifespan for UV lamps.

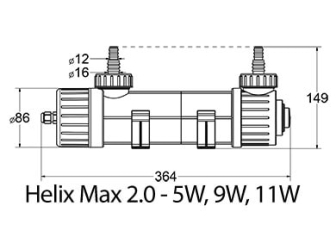

- Pipe fittings included 12mm or 16mm (see schematic image above)
| Sure, I'd be happy to help with a translation! Could you please provide the full text you'd like translated? | 5 watts | 9watts | 11watts |
| Saltwater aquarium | up to 200 liters | up to 300 liters | up to 400 liters |
| Recommended flow rate | 100-200 l/h | 100-200 l/h | 100-400 L/h |
| Freshwater aquarium | up to 300 liters | up to 500 liters | up to 800 liters |
| Recommended flow rate | 100-300 l/h This text represents a range of flow rates in liters per hour. It does not require translation as it uses universally recognized units of measurement. | 100-500 l/h | 300-800 l/h |
| Power | 1.1 W/UVC | 2.4 W/UVC | 3.6 W/UVC |
| Cable length | 3.5 m | 3.5 m | 3.5 m |
| Type of lamp | PL-S-5 W | PL-S-9 W | The text "PL-S-11 W" appears to be a code or identifier rather than a phrase in French. Therefore, it does not require translation. If this is a specific term or acronym, please provide additional context so I can better assist you. |
| Maximum pressure | 0.4 bar | ||
| Maximum water column. | 2 meters | ||
| Electrical connection | 220-240 V / 50/60 Hz | ||
| Case dimensions without joints l x l in mm, approximately |
370, Ø 90 | 370, Ø 90 | 370, Ø 90 |
Required pipe diameter: 12 or 16 mm (see photos)
